GreaseShield® 4000-F

Applications: All Contamination Appliances at a Centralised location, not exceeding flow rates

Features:

  • Automatic Self Cleaning
  • Automatic grease removal & solids filtration
  • Fully programmable operating times, to suit your kitchen
  • Unique Reverse Flow Figuration for increase FOG separation
  • In-Situ Bioremediation
  • Lowest Power Consumption in its Class
  • Stainless Steel Hygiene Stand on casters
  • Large Food Waste Holding Capacity
  • Recycles waste thermal energy
  • User Friendly
  • Globally Certified

Flow Rate: 4.0 L/S (60 US GPM)
Equipped with FilterShield™ 2000 – for solid waste separation

Additional Extras:

  • Spare Filtration Basket, to simplify daily maintenance procedures

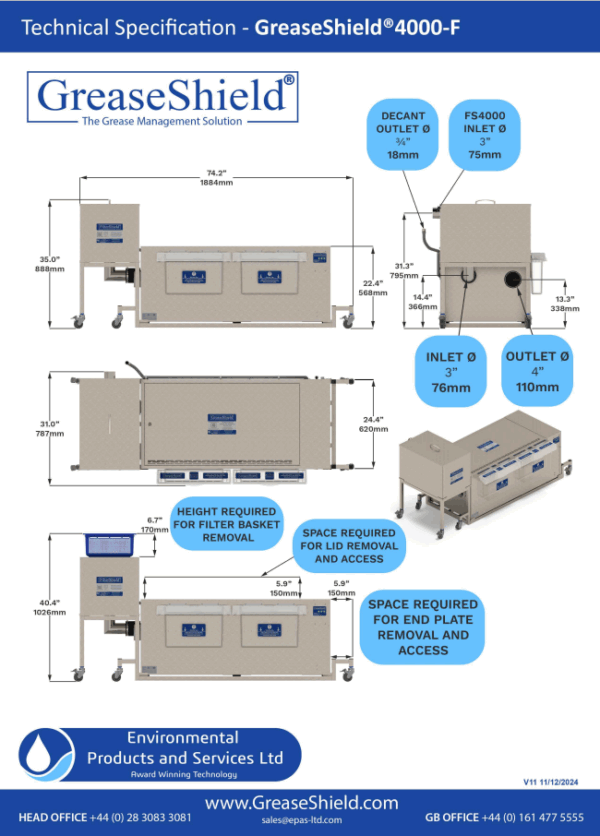

GS4000-F Downloadable Documents

Description

Applications:

• Conveyor/Tunnel Dishwashers
• Pot-Wash & Pre-Rinse Sinks

Flow Rates & Certification:

• Pro-Active Flow Rate – 3 L/sec
• ASM E Certification
• PDI Certification
• CSA Certification
• EN 1825 Certification

Standard Features & Functions:

• Automatic FOG & solids removal
• Self cleaning
• Magnetic baffle for bioremediation
• PLC controlled
• Reverse flow configuration
• Grey water recirculation
• Globally certified award winning technology

Plumbing Connections:

  • Inlet: 2″/54mm
  • Outlet: 3″/76mm
  • Hot Water Solenoid: ¾”/22mm

Electrical Ratings
UK,EU,AU,NZ

  • Voltage: 230v
  • Frequency: 50Hz
  • Current: 0.49A

USA

  • Voltage: 120v
  • Frequency: 60Hz
  • Current: 0.98A

Standard Operational Times

  • Days of Operation: 7 Days a Week
  • Hours of Operation: 07:00-02:30

Note: Operational times should be adjusted to suit the needs of the kitchen.

Average Power Consumption
15.8W Per Hour

Certifications & Approvals

• PDI G101 (Plumbing & Drainage Institute)
• ASME A112.14.3 & A112.14.4 (American Society of Mechanical Engineers)
• NSF International (National Sanitation Foundation)
• CSA (Canadian Standards Association) – Grease Interceptors
• UL (Underwriters Laboratory)
• IAPMO (International Association of Plumbing and Mechanical Officials) Uniform Plumbing Code Certification Mark
• UKCA (UK Conformity Assessed)
• CE – Conformity with Health, Safety and Environmental Protection\ Standards with the European Economic Area (EEA)
• EN1825 (European Standard for Grease Separators)
• KIWA (ETA DK, Swedac & SINTEF) – Sweden, Norway and Finland . European Institution for Testing, Inspection and Certification
• SHASE-S 217:2016 (Japanese Grease Management Standard for Grease Interceptors)
