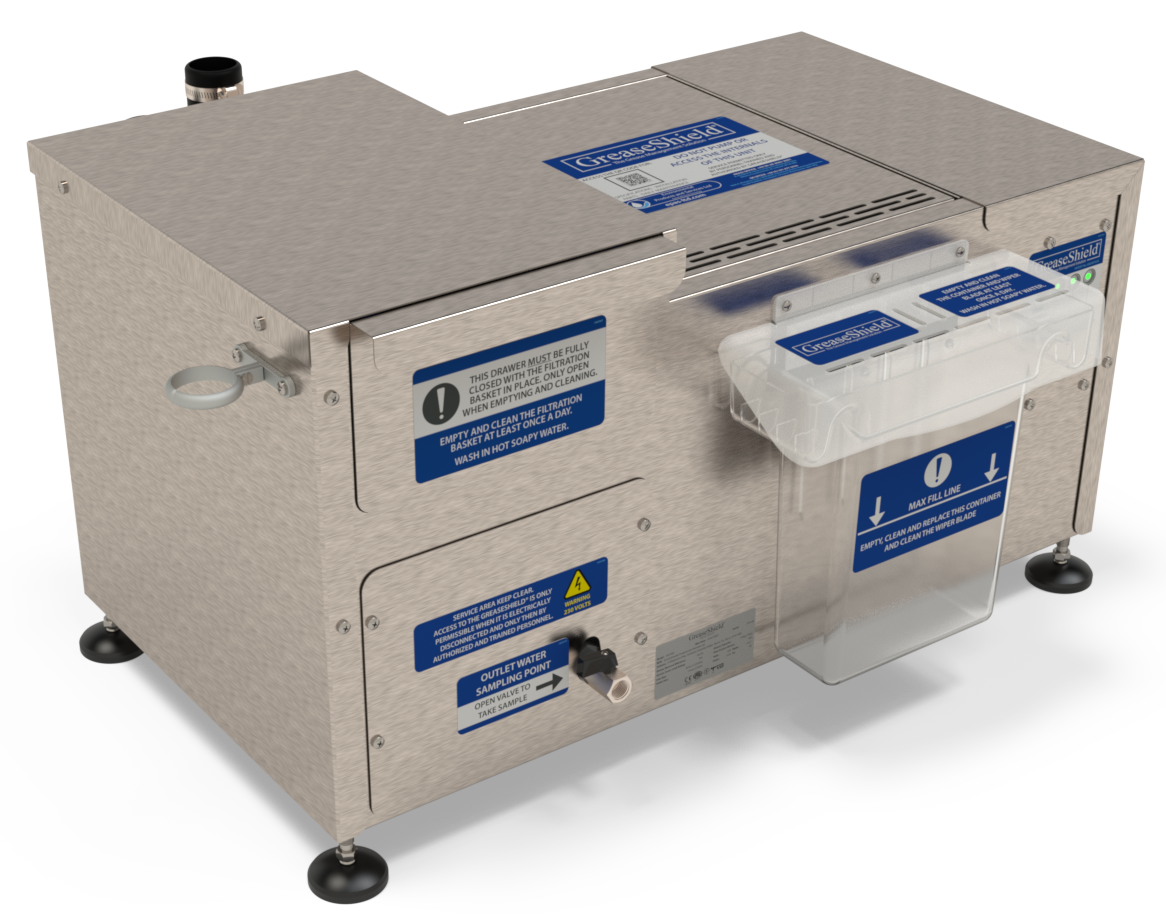

Technical Specification - GreaseShield® 1500-DPF
Drawer Pre-Filter
For Solid Waste
Separation

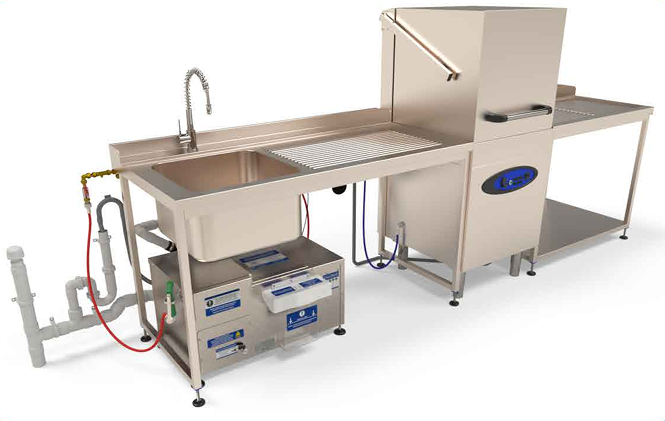

Applications
- Single Bowl Pot Wash Sinks
- Pre-Rinse Sinks
- Hood Dishwashers
Flow Rate & Specification
- Pro-Active Flow rate - 1.5 L/s
- Solid Waste Retention Capacity - 6.5 Litres
Standard Features & Functions
- Automatic FOG & solids removal
- Drawer Pre-Filter for solids waste separation and retention
- Filtration Basket with a 0.7mm fine mesh base, for smaller particle retention
- Self cleaning
- Magnetic baffle for bioremediation
- PLC controlled
- Non restricted Vortex Flow Control device
- Reverse flow configuration
- Grey water recirculation
- Globally certified award winning technology
- The only Green Certified grease trap in the world
Plumbing Connections
Drawer Pre-Filter Inlet 1.5″/40mm
Outlet 2″/54mm
Decant Outlet ¾”/18mm
Hot Water Solenoid ¾”/22mm
Electrical Ratings USA UK,EU,AU,NZ
Voltage 120V 230V
Frequency 60Hz 50Hz
Current 0.98A 0.49A
Standard Operational Times
Days of Operation 7 Days a Week
Hours of Operation 07:00 – 02:30
Note: Operational times should be adjusted to suit the needs of the kitchen
Average Power Consumption
15.8W Per Hour
EPAS Ltd Certifications & Approvals
- Global GreenTag LCA Rate Gold Certification
- ASME A112.14.3 & A112.14.4 (American Society of Mechanical Engineers)
- NSF International (National Sanitation Foundation)
- CSA (Canadian Standards Association) - Grease Interceptors
- UL (Underwriters Laboratory)
- IAPMO (International Association of Plumbing and Mechanical Officials) Uniform Plumbing Code Certification Mark
- UKCA (UK Conformity Assessed)
- CE - Conformity with Health, Safety and Environmental Protection \ Standards with the European Economic Area (EEA)
- EN1825 (European Standard for Grease Separators)
- KIWA (ETA DK, Swedac & SINTEF) - Sweden, Norway and Finland. European Institution for Testing, Inspection and Certification
- SHASE-S 217:2016 (Japanese Grease Management Standard for Grease Interceptors)
Head Office +44 (0) 28 3083 3081
www.GreaseShield.com
sales@epas-ltd.com
GB Office +44 (0) 161 477 5555
Technical Specification - GreaseShield® 1500-DPF

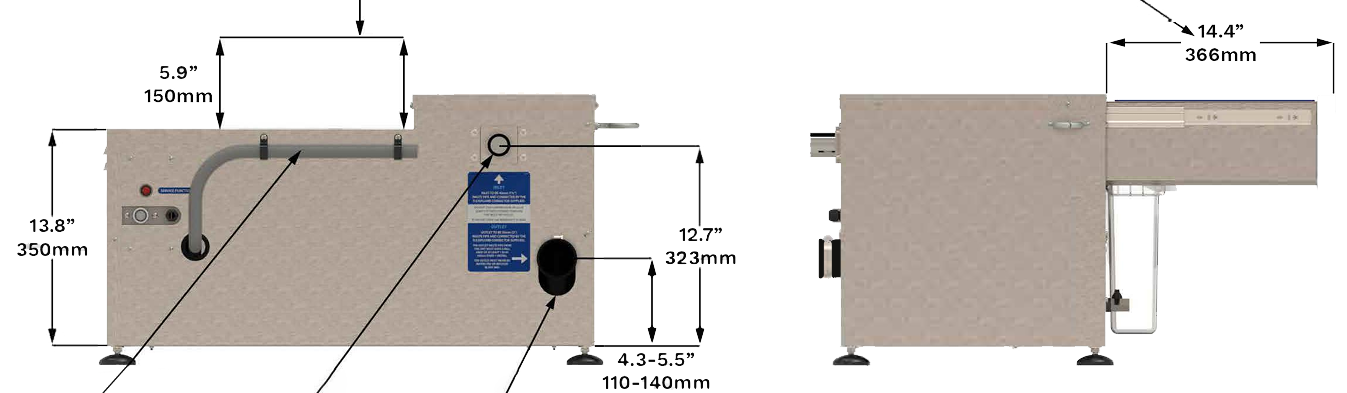

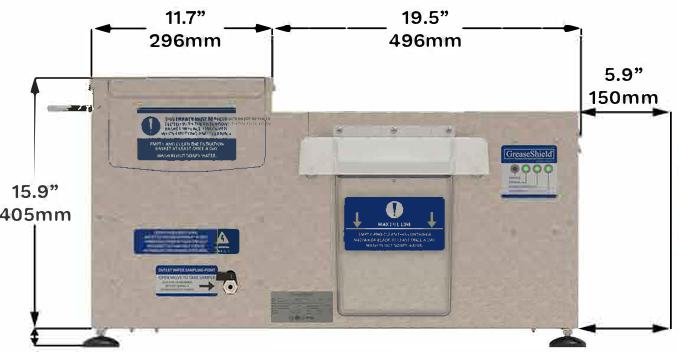

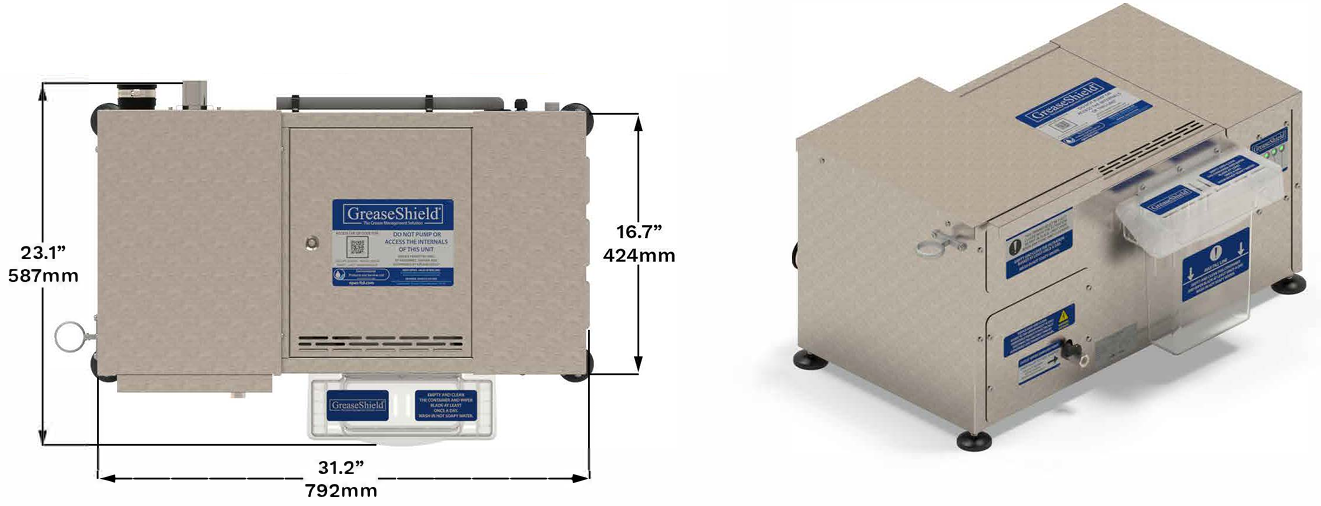

Space required for End Plate Removal and Access
ADJUSTABLE FEET HEIGHT
1.2 – 6.3″
30-160mm
Space required for Lid Removal and Access
Space required to pull out drawer and remove filter baskets
Decant Outlet Ø
¾”
18mm
Inlet Ø
1.5″
40mm
Outlet Ø
8″
54mm
